Insulation Mats

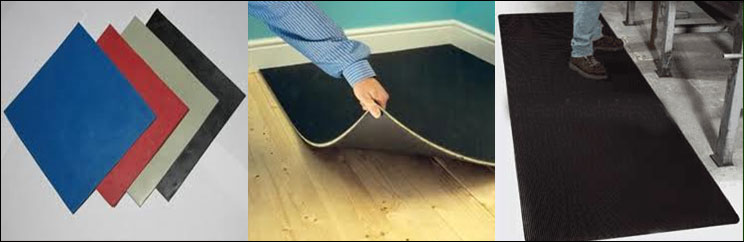

Rubber, also known as natural dielectric insulator by inherent nature. Rubbers are mixed with the right component so it becomes very heavy duty matting to place on the floor around the control panel, switch board, transformer and high voltage work places which are the prone to electric current. Basic concept in the manufacturing of electrical insulation mats also known as dielectric carpet simply to secure the human being & electronic utilities on electrical sheet insulation. Insulation Mats manufacturers suppliers in Mumbai, India to supply entire world for electrical insulator mat since 1964 as per the ISO standards with reliable and durable features.
Annexure-1
SPECIFICATION FOR MECH INSULATING MATS AS PER THE IS 15652: 2006
| Class
|
Thickness
|
Max. Use Voltage
|
AC Proof Voltage
|
Di-electric Strength
|
| A |
2.0 MM |
3.3 KV |
10 KV |
30 KV |
| B |
2.5 MM |
11 KV |
22 KV |
45 KV |
| C |
3.0 MM |
33 KV |
36 KV |
65 KV |
| Visual: |
Diamond Profile on the top and other side cloths impressions |
| Dimension: |
Standard Length 2.0 Meters – Mats in rolls of 10/ 20/ 30 meters and more also available on the request. |
| Standard Width: |
1.0 Mtr. – Width up to 1500mm also available on request |
| Standard Thickness: |
2.0mm, 2.5mm, 3.0mm. Higher thickness conforming to IS 15652 also available. |
| Shapes: |
Form Rolls, Square Tiles, Mats |
| Working Temperature: |
10°C to 55°C |
| Colors : |
Black, Red Blue Grey |
15652 Features/Properties
| Tolerance on Thickness: |
+/- 10% |
| Tensile Strength: |
Min. 17N/mm2 |
| Elongation at Break: |
(Min.) 300% |
| Heat Ageing: |
Tensile & Elongation not less than 75% of org. value. |
| Flame Retardance: |
V-0, V-1 (about 5 Seconds) |
| Leakage Current: |
Not more than 10mA |
| Acid/Alkali Resistance: |
Very Good |
| Insulation Resistance: |
Min. 100000 Mega Ohms |
| Extreme Low Temperature: |
Resistant upto -40°C. |
| Expected Life: |
5-10 years. DIN 9760 |
INSULATING RUBBER MATTING
IEC 61111-2009
The following division is based on threshold level of electric current resistance.
| Classification
|
Working Voltage
|
Proof Voltage
|
Suitable Thickness
|
Suitable Thickness
|
| Class 2 |
17000V AC |
20000V AC |
3mm |
30000V AC |
| Class 3 |
26500V AC |
30000V AC |
3mm |
40000V AC |
| Class 4 |
36000V AC |
40000V AC |
4.5mm |
50000V AC |
Physical Properties:
| Width |
0.9mtr, 1.0mtr, 1.2mtr, 1.5mtr. |
| Length |
2mtr, 5mtr, 10mtr, 20mtr, or as per requirement. |
| Thickness |
As Per Specified Class. |
| Colours |
|
| Surface/Design |
Anti-Skid Fabric Impression or Corrugated Top |
