MECH04 Packing

ITEM ITEM NO. MECH CODE DIMENSION
PACKING MECH04 MECH04-012 12.7 x 25.4 x 19.05
PACKING MECH04 MECH04-019 19.05 x 28.5 x 17.46
PACKING MECH04 MECH04-020 20.62 x 33.32 x 33,32
PACKING MECH04 MECH04-022 22.22 x 34.92 x 19.05
PACKING MECH04 MECH04-031 31.75 x 44.45 x 25.4
PACKING MECH04 MECH04-038 38.1 x 50.8 x 25.4
PACKING MECH04 MECH04-038/1 38.1 x 53.98 x 25.4
PACKING MECH04 MECH04-044 44.45 x 57.15 x 25,4
PACKING MECH04 MECH04-044/1 44.45 x 63.5 x 38.1
PACKING MECH04 MECH04-044/2 44.45 x 69.85 x 50,8
PACKING MECH04 MECH04-050 50.8 x 63.5 x 25.4
PACKING MECH04 MECH04-050/1 50.8 x 65 x 25.4
PACKING MECH04 MECH04-050/2 50.8 x 66.67 x 25.4
PACKING MECH04 MECH04-050/3 50.8 x 69.85 x 25.4
PACKING MECH04 MECH04-053 53.98 x 69.85 x 28.5
PACKING MECH04 MECH04-057 57.16 x 76.2 x 25.4
PACKING MECH04 MECH04-063 63.5 x 76.2 x 28.5
PACKING MECH04 MECH04-063/2 63.5 x 79.37 x 28.5
PACKING MECH04 MECH04-063/3 63.5 x 82.55 x 28.5
PACKING MECH04 MECH04-069 69.85 x 88.9 x 31,75
PACKING MECH04 MECH04-076 76.2 x 88.9 x 25,4
PACKING MECH04 MECH04-076/1 76.2 x 95.25 x 31,75
PACKING MECH04 MECH04-076/2 76.2 x 101.6 x 38.1
PACKING MECH04 MECH04-082 82.55 x 101.6 x 31,75
PACKING MECH04 MECH04-088 88.9 x 104.8 x 28.5
PACKING MECH04 MECH04-088/1 88.9 x 107.95 x 30.16
PACKING MECH04 MECH04-088/2 88.9 x 114.3 x 38.1
PACKING MECH04 MECH04-095 95.25 x 114.3 x 30.16
PACKING MECH04 MECH04-101 101.6 x 127 x 38,1
PACKING MECH04 MECH04-107 107.95 x 127 x 31,75
PACKING MECH04 MECH04-107/1 107.95 x 130.18 x 38,1
PACKING MECH04 MECH04-114 114.3 x 133.36 x 31,75
PACKING MECH04 MECH04-114/1 114.3 x 139.7 x 38,1
PACKING MECH04 MECH04-209 209.55 x 228.6 x 38,1

PACKING

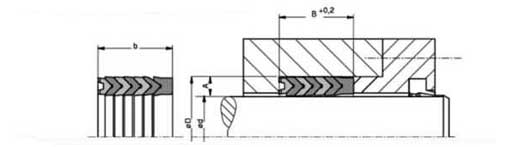

Made of cotton fabric impregnated with NBR (nitrile) , MECH01 and MECH04 series consist of 7 base components; one back up ring (rubber reinforced with hard fabric), one header ring with POM or fabric, three middle V-rings with NBR. MECH01 is used for rod applications. Made of fabric impregnated with FKM (viton), our packings for special conditions (high temperature, special liquid, chemicals) are produced in the contents of special order. Our packings prepared in this way consist all of their components viton with fabric. For the packing applications, it is required to use the design of rod in parts or piston. It is recommended that a suitable grease or lubricant must be used during assemblage. It is important for the working life of packings that the measure, B, in the packings housing should be adjustable with a proportion of 5% of given measure, B in our catolog it is obvious that over squeezing packings V-rings during fitting will result in problems such as high friction forces, over heating and vibrated working in low pessure. If there is the requirement of using closed type seal housing, packings can be used by cutting their V-rings with a slope 45° and adjusting these cutted rings in the way of setting them with an angle of 75° in between. This way of solution is the case when most required.

“For needs out of standard dimensions, please apply our costumer service.”
