MECH 17 Piston Seal


ITEM ITEM NO. MECH CODE DIMENSION
PISTON SEALS MECH17 MECH17 012-007,1 12X7,1X2,2
PISTON SEALS MECH17 MECH17 022,15-14,65 22,15X14,65X3,2
PISTON SEALS MECH17 MECH17 025-014 25X14X4,2
PISTON SEALS MECH17 MECH17 025-017,5 25X17,5X3,2
PISTON SEALS MECH17 MECH17 032-021 32X21X4,2
PISTON SEALS MECH17 MECH17 032-024,5 32X24.5X3.2
PISTON SEALS MECH17 MECH17 040-029  40X29X4,2
PISTON SEALS MECH17 MECH17 050-034.5  50X34.5X5.5
PISTON SEALS MECH17 MECH17 050-039 50X39X4,2
PISTON SEALS MECH17 MECH17 055-044 55X44X4,2
PISTON SEALS MECH17 MECH17 060-044.5 60X44,5X6,3
PISTON SEALS MECH17 MECH17 060-049 60X49X4,2
PISTON SEALS MECH17 MECH17 063-052 63X52X4,2
PISTON SEALS MECH17 MECH17 065-054 65X54X4,2
PISTON SEALS MECH17 MECH17 070-054,5 70X54,5X6,3
PISTON SEALS MECH17 MECH17 070-059 70X59X4,2
PISTON SEALS MECH17 MECH17 075-064 75X64X4,2
PISTON SEALS MECH17 MECH17 080-059 80X59X8.1
PISTON SEALS MECH17 MECH17 080-064.5 80X64.5X6,3
PISTON SEALS MECH17 MECH17 085-064 85X64X8.1
PISTON SEALS MECH17 MECH17 085-069.5 85X69.5X6,3
PISTON SEALS MECH17 MECH17 090-074.5 90X74.5X6,3
PISTON SEALS MECH17 MECH17 095-079.5 95X79.5X6,3
PISTON SEALS MECH17 MECH17 100-079 100X79X8,1
PISTON SEALS MECH17 MECH17 100-084.5 100X84.5X6.3
PISTON SEALS MECH17 MECH17 100-089 100X89X4,2
PISTON SEALS MECH17 MECH17 115-094 115X94X8,1
PISTON SEALS MECH17 MECH17 120-099 120X99X8,1
PISTON SEALS MECH17 MECH17 120-104.5 120X104.5X6,3
PISTON SEALS MECH17 MECH17 125-104 125X104X8,1
PISTON SEALS MECH17 MECH17 125-109.5 125X109.5X6.3
PISTON SEALS MECH17 MECH17 125-114 125X114X4,2
PISTON SEALS MECH17 MECH17 130-109 130X109X8,1
PISTON SEALS MECH17 MECH17 140-119 140X119X8,1
PISTON SEALS MECH17 MECH17 140-124,5 140X124,5X6,3
PISTON SEALS MECH17 MECH17 150-129 150X129X8,1
PISTON SEALS MECH17 MECH17 160-139 160X139X8,1
PISTON SEALS MECH17 MECH17 170-149 170X149X8,1
PISTON SEALS MECH17 MECH17 180-159 180X159X8,1
PISTON SEALS MECH17 MECH17 190-169 190X169X8,1
PISTON SEALS MECH17 MECH17 200-179 200X179X8,1
PISTON SEALS MECH17 MECH17 200-184,5 200X184,5X6,3
PISTON SEALS MECH17 MECH17 210-189 210X189X8,1
PISTON SEALS MECH17 MECH17 220-199 220X199X8.1
PISTON SEALS MECH17 MECH17 225-204 225X204X8,1
PISTON SEALS MECH17 MECH17 230-209 230X209X8,1
PISTON SEALS MECH17 MECH17 240-219 240X219X8,1
PISTON SEALS MECH17 MECH17 250-229 250X229X8,1
PISTON SEALS MECH17 MECH17 260-239 260X239X8.1
PISTON SEALS MECH17 MECH17 265-244 265X244X8,1
PISTON SEALS MECH17 MECH17 270-249 270X249X8,1
PISTON SEALS MECH17 MECH17 275-254 275X254X8,1
PISTON SEALS MECH17 MECH17 280-259 280X259X8.1
PISTON SEALS MECH17 MECH17 300-279 300X279X8.1
PISTON SEALS MECH17 MECH17 310-289 310X289X8.1
PISTON SEALS MECH17 MECH17 320-295,5 320X295,5X8,1
PISTON SEALS MECH17 MECH17 320-299 320X299X8.1
PISTON SEALS MECH17 MECH17 330-305.5 330X305,5X8,1
PISTON SEALS MECH17 MECH17 340-315.5 340x315,5x8,1
PISTON SEALS MECH17 MECH17 350-325.5 350X325.5X8.1
PISTON SEALS MECH17 MECH17 360-335.5 360X335,5X8,1
PISTON SEALS MECH17 MECH17 370-345.5 370X345,5X8,1

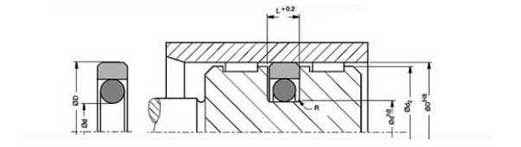

PISTON SEAL

MECH17 Piston Seals have design in 2 parts consisting of PTFE Bronze Teflon Ring and O'rings used as pressure ring. This design in suitable up to a pressure of 400 bar in double acting cylinders. The advantage compared with other sealing systems are Linear velocity reaching at 5 m/s, non-stick slip feature in long static use, low friction endurance, durabilty against high temperatures and big variety of chemical liquids, providing piston as one part and small. By using O'rings, used as pressure ring, in different combinations it is possible to solve all sorts of problems ( e.g. FKM).

"For needs out of standart dimensions, please apply our customer service."


Operating Conditions

Media

Mineral oils ( DIN 51524 ) HFA,HFB,HFC hydraulic fluids.

Temperature

-30 °C + 105°C

Operating Pressure

< 400 Bar

Linear Velocity

< 5 m/sn

Surface Roughness



Ra

Rt

Sliding Surface

< 0.4   m

< 2   m

Housing Surface

< 1.6   m

< 6.3   m
