MECH 26 Hydraulic Piston Nutring


ITEM ITEM NO. MECH CODE DIMENSION
HYDRAULIC PISTON SEAL MECH26 MECH 26-025 S 25 x 8 x 22
HYDRAULIC PISTON SEAL MECH26 MECH 26-026 S 26 x 8 x 22
HYDRAULIC PISTON SEAL MECH26 MECH 26-030 S 30 x 8 x 22
HYDRAULIC PISTON SEAL MECH26 MECH 26-032 S 32 x 8 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-035 S 35 x 8 x 26
HYDRAULIC PISTON SEAL MECH26 MECH 26-035/1 S 35 x 8 x 18
HYDRAULIC PISTON SEAL MECH26 MECH 26-038 S 38 x 8 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-040/1 S 40 x 14 x 23
HYDRAULIC PISTON SEAL MECH26 MECH 26-040/2 S 40 x 10 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-045 S 45 x 10 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-050 S 50 x 10 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-050/1 S 50 x 16 x 23
HYDRAULIC PISTON SEAL MECH26 MECH 26-055 S 55 x 10 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-060 S 60 x 12 x 26
HYDRAULIC PISTON SEAL MECH26 MECH 26-060/1 S 60 x 21 x 26
HYDRAULIC PISTON SEAL MECH26 MECH 26-060/2 S 60 x 12 x 27
HYDRAULIC PISTON SEAL MECH26 MECH 26-060/3 S 60 x 18 x 26
HYDRAULIC PISTON SEAL MECH26 MECH 26-062 S 62 x 41 x 30
HYDRAULIC PISTON SEAL MECH26 MECH 26-063 S 63 x 12 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-065 S 65 x 12 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-070 S 70 x 12 x 30
HYDRAULIC PISTON SEAL MECH26 MECH 26-075 S 75 x 12 x 30
HYDRAULIC PISTON SEAL MECH26 MECH 26-080 S 80 x 12 x 30
HYDRAULIC PISTON SEAL MECH26 MECH 26-082 S 82 x 12.2 x 30
HYDRAULIC PISTON SEAL MECH26 MECH 26-085/1 S 85 x 12 x 35
HYDRAULIC PISTON SEAL MECH26 MECH 26-090 S 90 x 12 x 35
HYDRAULIC PISTON SEAL MECH26 MECH 26-100 S 100 x 12 x 35
HYDRAULIC PISTON SEAL MECH26 MECH 26-110 S 110 x 12 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-120 S 120 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-125 S 125 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-125/1 S 125 x 30 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-125/2 S 125 x 30 x 50
HYDRAULIC PISTON SEAL MECH26 MECH 26-130 S 130 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-140 S 140 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-145 S 145 x 20 x 45
HYDRAULIC PISTON SEAL MECH26 MECH 26-145/1 S 145 x 41 x 45
HYDRAULIC PISTON SEAL MECH26 MECH 26-150 S 150 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-160 S 160 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-175 S 175 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-180 S 180 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-200 S 200 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-230 S 230 x 30 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-250 S 250 x 30 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-300 S 300 x 60 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-025 25 x 8 x 22
HYDRAULIC PISTON SEAL MECH26 MECH 26-026 26 x 8 x 22
HYDRAULIC PISTON SEAL MECH26 MECH 26-030 30 x 8 x 22
HYDRAULIC PISTON SEAL MECH26 MECH 26-032 32 x 8 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-035 35 x 8 x 26
HYDRAULIC PISTON SEAL MECH26 MECH 26-035/1 35 x 8 x 18
HYDRAULIC PISTON SEAL MECH26 MECH 26-038 38 x 8 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-040 40 x 10 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-040/1 40 x 14 x 23
HYDRAULIC PISTON SEAL MECH26 MECH 26-045 45 x 10 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-050 50 x 10 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-050/1 50 x 16 x 23
HYDRAULIC PISTON SEAL MECH26 MECH 26-055 55 x 10 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-060 60 x 12 x 26
HYDRAULIC PISTON SEAL MECH26 MECH 26-060/1 60 x 21 x 26
HYDRAULIC PISTON SEAL MECH26 MECH 26-060/2 60 x 12 x 27
HYDRAULIC PISTON SEAL MECH26 MECH 26-062 62 x 41 x 30
HYDRAULIC PISTON SEAL MECH26 MECH 26-063 63 x 12 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-065 65 x 12 x 25
HYDRAULIC PISTON SEAL MECH26 MECH 26-070 70 x 12 x 30
HYDRAULIC PISTON SEAL MECH26 MECH 26-075 75 x 12 x 30
HYDRAULIC PISTON SEAL MECH26 MECH 26-080 80 x 12 x 30
HYDRAULIC PISTON SEAL MECH26 MECH 26-085 85 x 12 x 35
HYDRAULIC PISTON SEAL MECH26 MECH 26-090 90 x 12 x 35
HYDRAULIC PISTON SEAL MECH26 MECH 26-100 100 x 12 x 35
HYDRAULIC PISTON SEAL MECH26 MECH 26-110 110 x 12 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-120 120 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-125 125 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-125/1 125 x 30 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-125/2 125 x 30 x 50
HYDRAULIC PISTON SEAL MECH26 MECH 26-130 130 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-140 140 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-145 145 x 20 x 45
HYDRAULIC PISTON SEAL MECH26 MECH 26-145/1 145 x 41 x 45
HYDRAULIC PISTON SEAL MECH26 MECH 26-150 150 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-160 160 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-175 175 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-180 180 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-200 200 x 20 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-230 230 x 30 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-250 250 x 30 x 40
HYDRAULIC PISTON SEAL MECH26 MECH 26-300 300 x 60 x 40

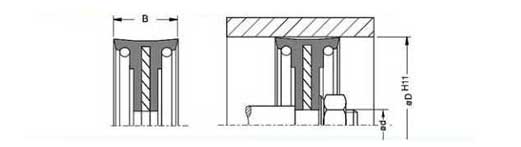

HYDRAULIC PISTON SEAL

By vulcanizing a specially designed lip with NBR, over a metal body, it is designed in such a way that the lips provides sealing by the help of spring force.

“ For needs out of standart dimensions, please apply our customer service.”


Operating Conditions

Media

Mineral oils ( DIN 51524 ) HFA,HFB,HFC Hydraulic oils.

Temperature

-30 °C + 105°C Mineral oils
+5 °C +60 °C HFA,HFB
- 30 °C +60 °C HFC

Working Pressure

250 Bar

Linear Velocity

< 0.5 m/sn

Surface Roughness



Ra

Rt

Sliding Surface

< 0.3 m

< 2.5 m

Tolerances

Radius D/d

Tolerances to be applied

D/d < 80

H11/f8

80 < D/d < 120

H11/f8

120 < D/d < 120

H11/f7

Housing Surface

Pressure

S

150

0.2

250

0.1
