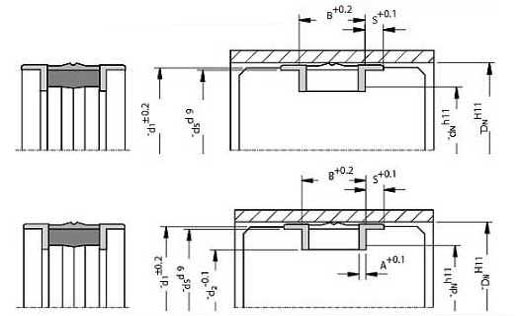

MECH 16 Compact Seal


ITEM ITEM NO. MECH CODE DIMENSION
COMPACT SEAL MECH16  MECH16 075-063 75X63X20,5
COPMACT SEAL MECH16  MECH16 025-017  25X17X13,5
COMPACT SEAL MECH16  MECH16 030-022  30X22X13,5
COMPACT SEAL MECH16  MECH16 032-024  32X24X15,5
COMPACT SEAL MECH16  MECH16 035-027  35X27X15,5
COMPACT SEAL MECH16  MECH16 040-032  40X32X15,5
COMPACT SEAL MECH16  MECH16 045-037  45X37X15,5
COMPACT SEAL MECH16  MECH16 050-038  50X38X20,5
COMPACT SEAL MECH16  MECH16 060-048  60X48X20,5
COMPACT SEAL MECH16  MECH16 063-051  63X51X20,5
COMPACT SEAL MECH16  MECH16 070-058  70X58X20,5
COMPACT SEAL MECH16  MECH16 080-065  80X65X20
COMPACT SEAL MECH16  MECH16 080-066  80X66X22,5
COMPACT SEAL MECH16  MECH16 085-071  85X71X22,5
COMPACT SEAL MECH16  MECH16 090-076  90X76X22,5
COMPACT SEAL MECH16  MECH16 100-086  100X86X22,5
COMPACT SEAL MECH16  MECH16 110-096  110X96X22,5
COMPACT SEAL MECH16  MECH16 120-106  120X106X22,5
COMPACT SEAL MECH16  MECH16 125-103  125X103X26,5
COMPACT SEAL MECH16  MECH16 125-108  125X108X26,5
COMPACT SEAL MECH16  MECH16 140-123  140X123X26,5
COMPACT SEAL MECH16  MECH16 150-133  150X133X26,5
COMPACT SEAL MECH16  MECH16 160-140  160X140X25
COMPACT SEAL MECH16  MECH16 160-143  160X143X26,5
COMPACT SEAL MECH16  MECH16 180-163  180X163X26,5
COMPACT SEAL MECH16  MECH16 200-180  200X180X31,5
COMPACT SEAL MECH16  MECH16 220-200  220X200X31,5
COMPACT SEAL MECH16  MECH16 250-230  250X230X31,5

COMPACT SEALS

One of the most suitable solutions for piston designes in double acting hydraulic cylinders is compact seals. Providing saving of piston and hydraulic cylinder material because of their structure occupying less area. Compact seals consist of combination of different elements as the name indicates.Another advantage of some compact seals designes for users is that they don't require using of guide element because of guide element inside of them. MECH presents a big variety of compact seal dimensions of MECH16 type.Consistings of 2 Pom Rings and 1NBR Ring whose dynamic operating surface is reinforced by hard fabric, our MECH16 series compact seals are double acting piston seals enduring against a pressure of 400 bar. They can be used safely at a linear velocity of 0.5 m/second and temperature between -30 °C and 105 °C.

"For needs out of standard dimensions, please apply our costumer service."


Operating Conditions

Media

 Mineral oils (DIN 51524) HFA,HFB,HFC hydraulic fluids

Temperature

 -30 °C + 105 °C

Operating Pressure

< 400 Bar

Liner Velocity

< 0.5 m/sn

Working temperature interval is -30 / max 205 °C for Viton Packings.


Surface Roughness



Ra

Rt

Sliding Surface

< 0.4   m

< 2   m

Housing Surface

< 1.6   m

< 6.3   m
