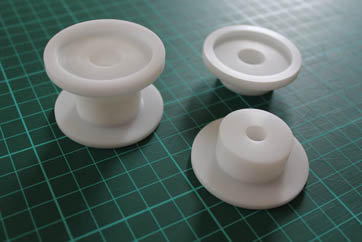

Polyoxymethylene (POM), also known as acetal or polyacetal and polyformaldehyde is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Celcon, Ramtal, Duracon, Kepital and Hostaform.
Typical applications for injection-molded POM include high performance engineering components such as small gear wheels, ball bearings, ski bindings, fasteners, knife handles, and lock systems. The material is widely used in the automotive and consumer electronics industry.
General Properties : | ||||
---|---|---|---|---|
Chemical Properties | ||||
Minimum value | Maximum value | Unit | Sources | |
Solidification shrinkage | 1.8 | 3.2 | % | Idemat 2003 |
Water absorption | 0.25 | 0.25 | % | Idemat 2003 |
Electrical Properties | ||||
Minimum value | Maximum value | Unit | Sources | |
Solidification shrinkage | 1.8 | 3.2 | % | Idemat 2003 |
Water absorption | 0.25 | 0.25 | % | Idemat 2003 |
Mechanical Properties | ||||
Minimum value | Maximum value | Unit | Sources | |
Bending strength | 50 | 80 | MPa | Idemat 2003 |
Compressive strength | 31 | 31 | MPa | Idemat 2003 |
Creep strength | - | - | MPa | - |
Density | 1410 | 1420 | kg/mÂ3 | Idemat 2003 |
Elongation | 25 | 25 | % | Idemat 2003 |
Fatigue failure | - | - | MPa | - |
Friction coefficient | 0.2 | 0.35 | - | Idemat 2003 |
Impact strength | 0.53 | 1.2 | J/cm | Idemat 2003 |
Shear modulus | 900 | 930 | MPa | Idemat 2003 |
Tensile strength | 69 | 72 | MPa | Idemat 2003 |
Thickness | - | - | MPa | - |
Thickness | - | - | MPa | - |
Young’s modulus | 2900 | 3500 | MPa | Idemat 2003 |
Optical Properties | ||||
Minimum value | Maximum value | Unit | Sources | |
Refractive index | 1.48 | 1.48 | - | Idemat 2003 |
Thermal Properties | ||||
Minimum value | Maximum value | Unit | Sources | |
Glass temperature | - | - | °C | - |
Melting temperature | 175 | 175 | °C | Idemat 2003 |
Service temperature | -60 | 110 | °C | Idemat 2003 |
Specific heat | 1465 | 1465 | J/kg.K | Idemat 2003 |
Thermal conductivity | 0.23 | 0.37 | W/m.K | Idemat 2003 |
Thermal expansion | 81 | 104 | e-6/K | Idemat 2003 |
