MECH 18 Compact Seal

MECH 18 Compact Seal
ITEM ITEM NO. MECH CODE DIMENSION
COMPACT SEALS MECH18 MECH18038.1025.4 38.1 X 25.4 X 15.87
COMPACT SEALS MECH18 MECH18 050.8-034.92 50.8 X 34.92 X 19.05
COMPACT SEALS MECH18 MECH18 057.15-041.27 57.15 X 41.27 X 19.05
COMPACT SEALS MECH18 MECH18 063.5-047.62 63.5 X 47.62 X 19.05
COMPACT SEALS MECH18 MECH18 066.67-050.8 66.67 X 50.8 X 19.5
COMPACT SEALS MECH18 MECH18 069.85-50.8 69,85 X 50,8 X 23,79
COMPACT SEALS MECH18 MECH18 076.2-057.15 76.2 X 57.15 X 23.80
COMPACT SEALS MECH18 MECH18 082.55-063.5 82.55 X 63.5 X 23.80
COMPACT SEALS MECH18 MECH18 088.9-069.85 88.9 X 69.85 X 23.80
COMPACT SEALS MECH18 MECH18 101.6-82.55 101.6 X 82.55 X 23.80
COMPACT SEALS MECH18 MECH18 107.95-88.9 107.95 X 88.9 X 23.80
COMPACT SEALS MECH18 MECH18 114.3-88.9 114.3 X 88.9 X 31.75
COMPACT SEALS MECH18 MECH18 127-101.6 127 X 101.6 X 31.75
COMPACT SEALS MECH18 MECH18 133,35-107.95 133.35 X 107.95 X 31.75
COMPACT SEALS MECH18 MECH18 152.4-127 152.4 X 127 X 31,75
COMPACT SEALS MECH18 MECH18 177.8-152.4 177.8 X 152.4 X 31.75
COMPACT SEALS MECH18 MECH18 203.2-171.45 203.2 X 171.45 X 038.1
COMPACT SEALS MECH18 MECH18 203.2-177.8 203.2 X 177.8 X 31.75
COMPACT SEALS MECH18 MECH18 020-011 20 X 11 X 13,5
COMPACT SEALS MECH18 MECH18 025-015 25 X 15 X 16,4
COMPACT SEALS MECH18 MECH18 025-016 25 X 16 X 13.5
COMPACT SEALS MECH18 MECH18 025-017/1 025 X 017 X 013,5
COMPACT SEALS MECH18 MECH18 025-017/2 25 X 17 X 10
COMPACT SEALS MECH18 MECH18 030-017 30 X 17 X 15,4
COMPACT SEALS MECH18 MECH18 030-021 30 X 21 X 13.5
COMPACT SEALS MECH18 MECH18 032-022 32 X 22 X 16,4
COMPACT SEALS MECH18 MECH18 032-022/1 32 X 22 X 15,5
COMPACT SEALS MECH18 MECH18 032-024 32 X 24 X 15,5
COMPACT SEALS MECH18 MECH18 032-024/1 32 X 24 X 10
COMPACT SEALS MECH18 MECH18 035-025 35 X 25 X 16,4
COMPACT SEALS MECH18 MECH18 040-024 40 X 24 X 18,4
COMPACT SEALS MECH18 MECH18 040-026 40 X 26 X 15,5
COMPACT SEALS MECH18 MECH18 040-030 40 X 30 X 16,4
COMPACT SEALS MECH18 MECH18 040-030/1 40 X 30 X 12,5
COMPACT SEALS MECH18 MECH18 040-032 40 X 32 X 15,5
COMPACT SEALS MECH18 MECH18 044-028 44.45 X 28.57 X 19.05
COMPACT SEALS MECH18 MECH18 045-029 45 X 29 X 18,4
COMPACT SEALS MECH18 MECH18 045-031 45 X 31 X 15,5
COMPACT SEALS MECH18 MECH18 045-035 45 X 35 X 16,4
COMPACT SEALS MECH18 MECH18 050-034 50 X 34 X 20,5
COMPACT SEALS MECH18 MECH18 050-034/1 50 X 34 X 18,4
COMPACT SEALS MECH18 MECH18 050-035 50 X 35 X 20
COMPACT SEALS MECH18 MECH18 050-038 50 X 38 X 20,5
COMPACT SEALS MECH18 MECH18 050-040 50 X 40 X 12.5
COMPACT SEALS MECH18 MECH18 055-039 55 X 39 X 20,5
COMPACT SEALS MECH18 MECH18 055-039/1 55 X 39 X 18,4
COMPACT SEALS MECH18 MECH18 060-044 60 X 44 X 20,5
COMPACT SEALS MECH18 MECH18 060-044/1 60 X 44 X 18,4
COMPACT SEALS MECH18 MECH18 060-048 60 X 48 X 20,5
COMPACT SEALS MECH18 MECH18 063-047 63 X 47 X 20,5
COMPACT SEALS MECH18 MECH18 063-047/1 63 X 47 X 18,4
COMPACT SEALS MECH18 MECH18 063-047/2 63 X 47 X 19,4
COMPACT SEALS MECH18 MECH18 063-048 63 X 48 X 20
COMPACT SEALS MECH18 MECH18 063-051 63 X 51 X 20,5
COMPACT SEALS MECH18 MECH18 065-049 65 X 49 X 20,5
COMPACT SEALS MECH18 MECH18 065-050 65 X 50 X 18,4
COMPACT SEALS MECH18 MECH18 067-051 67 X 51 X 18,4
COMPACT SEALS MECH18 MECH18 070-050 70 X 50 X 22,4
COMPACT SEALS MECH18 MECH18 070-054 70 X 54 X 20,5
COMPACT SEALS MECH18 MECH18 070-058 70 X 58 X 20,5
COMPACT SEALS MECH18 MECH18 075-055 75 X 55 X 22,4
COMPACT SEALS MECH18 MECH18 075-059 75 X 59 X 20.5
COMPACT SEALS MECH18 MECH18 080-060 80 X 60 X 22,4
COMPACT SEALS MECH18 MECH18 080-060/1 80 X 60 X 35 X 9.5
COMPACT SEALS MECH18 MECH18 080-062 80 X 62 X 22,4
COMPACT SEALS MECH18 MECH18 080-066 80 X 66 X 22,4
COMPACT SEALS MECH18 MECH18 085-065 85 X 65 X 22,4
COMPACT SEALS MECH18 MECH18 085-065/1 85 X 65 X 21.4
COMPACT SEALS MECH18 MECH18 090-070 90 X 70 X 22,4
COMPACT SEALS MECH18 MECH18 090-072 90 X 72 X 22,5
COMPACT SEALS MECH18 MECH18 090-072/1 90 X 72 X 22.5 X 3.60
COMPACT SEALS MECH18 MECH18 090-076 90 X 76 X 22,4
COMPACT SEALS MECH18 MECH18 095-075 95 X 75 X 22,4
COMPACT SEALS MECH18 MECH18 095-081 95 X 81 X 22,4
COMPACT SEALS MECH18 MECH18 100-075 100 X 75 X 22,4
COMPACT SEALS MECH18 MECH18 100-080 100 X 80 X 25,4
COMPACT SEALS MECH18 MECH18 100-080/1 100 X 80 X 35
COMPACT SEALS MECH18 MECH18 100-082 100 X 82 X 22,4
COMPACT SEALS MECH18 MECH18 100-085 100 X 85 X 20
COMPACT SEALS MECH18 MECH18 100-086 100 X 86 X 22,4
COMPACT SEALS MECH18 MECH18 105-080 105 X 80 X 22,4
COMPACT SEALS MECH18 MECH18 105-080/1 105 X 80 X 22.4 X 6.35
COMPACT SEALS MECH18 MECH18 110-085 110 X 85 X 22,4
COMPACT SEALS MECH18 MECH18 110-090 110 X 90 X 35
COMPACT SEALS MECH18 MECH18 110-092 110 X 92 X 22,5
COMPACT SEALS MECH18 MECH18 110-096 110 X 96 X 22,4
COMPACT SEALS MECH18 MECH18 115-090 115 X 90 X 22,4
COMPACT SEALS MECH18 MECH18 115-097 115 X 97 X 22,4
COMPACT SEALS MECH18 MECH18 115-097/1 115 X 97 X 22.4 X 3.60
COMPACT SEALS MECH18 MECH18 115-101 115 X 101 X 22,4
COMPACT SEALS MECH18 MECH18 120-095 120 X 95 X 22,4
COMPACT SEALS MECH18 MECH18 120-100 120 X 100 X 35 X 9.5
COMPACT SEALS MECH18 MECH18 120-106 120 X 106 X 22,4
COMPACT SEALS MECH18 MECH18 125-100 125 X 100 X 25,4
COMPACT SEALS MECH18 MECH18 125-100/1 125 X 100 X 45
COMPACT SEALS MECH18 MECH18 125-103 125 X 103 X 26.5
COMPACT SEALS MECH18 MECH18 125-105 125 X 105 X 25.4
COMPACT SEALS MECH18 MECH18 125-108 125 X 108 X 26,5
COMPACT SEALS MECH18 MECH18 130-105 130 X 105 X 25,4 X 6,35
COMPACT SEALS MECH18 MECH18 130-105/1 130 X 105 X 25.4 X 9.52
COMPACT SEALS MECH18 MECH18 130-105/2 130 X 105 X 25.4 X 9.52
COMPACT SEALS MECH18 MECH18 135-110 135 X 110 X 25.4 X 9.52
COMPACT SEALS MECH18 MECH18 135-110/1 135 X 110 X 25.4 X 6.35
COMPACT SEALS MECH18 MECH18 140-115 140 X 115 X 25,4
COMPACT SEALS MECH18 MECH18 140-115/1 140 X 115 X 25,4 X 9,52
COMPACT SEALS MECH18 MECH18 140-115/2 140 X 115 X 25.4
COMPACT SEALS MECH18 MECH18 140-115/4 140 X 115 X 45
COMPACT SEALS MECH18 MECH18 140-118 140 X 118 X 26,5
COMPACT SEALS MECH18 MECH18 140-123 140 X 123 X 26,5
COMPACT SEALS MECH18 MECH18 145-120 145 X 120 X 25.4
COMPACT SEALS MECH18 MECH18 150-125 150 X 125 X 25,4
COMPACT SEALS MECH18 MECH18 150-125/1 150 X 125 X 25,4 X 6,35
COMPACT SEALS MECH18 MECH18 150-128 150 X 128 X 26,5
COMPACT SEALS MECH18 MECH18 155-130 155 X 130 X 25,4 X 6,35
COMPACT SEALS MECH18 MECH18 155-130/1 155 X 130 X 25,4 X 9,52
COMPACT SEALS MECH18 MECH18 160-130 160 X 130 X 25,4 X 6,35
COMPACT SEALS MECH18 MECH18 160-130/1 160 X 130 X 25,4 X 9,52
COMPACT SEALS MECH18 MECH18 160-130/2 160 X 130 X 25,4 X 9,52
COMPACT SEALS MECH18 MECH18 160-135 160 X 135 X 25,4
COMPACT SEALS MECH18 MECH18 160-135/1 160 X 135 X 45
COMPACT SEALS MECH18 MECH18 160-138 160 X 138 X 26,5 X 5,10
COMPACT SEALS MECH18 MECH18 160-143 160 X 143 X 26,5
COMPACT SEALS MECH18 MECH18 165-140 165 X 140 X 25,4
COMPACT SEALS MECH18 MECH18 170-145 170 X 145 X 25,4
COMPACT SEALS MECH18 MECH18 170-148 170 X 148 X 26.5
COMPACT SEALS MECH18 MECH18 180-150 180 X 150 X 35,4
COMPACT SEALS MECH18 MECH18 180-150/1 180 X 150 X 36
COMPACT SEALS MECH18 MECH18 180-155 180 X 155 X 25.4
COMPACT SEALS MECH18 MECH18 180-158 180 X 158 X 26,5
COMPACT SEALS MECH18 MECH18 180-163 180 X 163 X 26,5
COMPACT SEALS MECH18 MECH18 185-160 185 X 160 X 25,4
COMPACT SEALS MECH18 MECH18 190-165 190 X 165 X 25,4
COMPACT SEALS MECH18 MECH18 195-170 195 X 170 X 25,4
COMPACT SEALS MECH18 MECH18 200-170 200 X 170 X 35,4
COMPACT SEALS MECH18 MECH18 200-175 200 X 175 X 31,5
COMPACT SEALS MECH18 MECH18 200-175/1 200 X 175 X 25,4
COMPACT SEALS MECH18 MECH18 200-180 200 X 180 X 31,5
COMPACT SEALS MECH18 MECH18 210-185 210 X 185 X 25,4
COMPACT SEALS MECH18 MECH18 220-190 220 X 190 X 35,4
COMPACT SEALS MECH18 MECH18 220-190/1 220 X 190 X 35,4
COMPACT SEALS MECH18 MECH18 220-195 220 X 195 X 25,4
COMPACT SEALS MECH18 MECH18 220-200 220 X 200 X 31,5
COMPACT SEALS MECH18 MECH18 230-205 230 X 205 X 25,4
COMPACT SEALS MECH18 MECH18 240-215 240 X 215 X 25.4
COMPACT SEALS MECH18 MECH18 250-220 250 X 220 X 35,4
COMPACT SEALS MECH18 MECH18 250-225 250 X 225 X 25,4
COMPACT SEALS MECH18 MECH18 250-230 250 X 230 X 31,5
COMPACT SEALS MECH18 MECH18 260-235 260 X 235 X 35.4
COMPACT SEALS MECH18 MECH18 280-250 280 X 250 X 36,4
COMPACT SEALS MECH18 MECH18 280-250/1 280 X 250 X 35,4

COMPACT SEALS

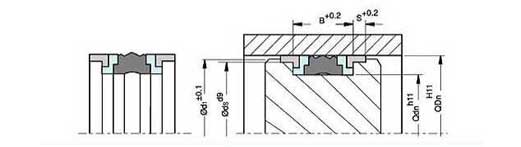

One of the most suitable solutions for piston designes in double acting hydraulic cylinders is compact seals.Providing saving of piston and hydraulic cylinder material because of their structure occupying less area. Compact seals consist of combination of different elements as the name indicates. Another advantage of some compact seals designes for users is that they don't require using of guide element because of guide element inside of them. MECH presents a big variety of compact seal dimensions of MECH18 type.With 5 parts design our MECH18 compact seals are used as piston seal for double acting cylinders at maksimum 400 bar.There is NBR ring, having 3 sealing lips, in the middle; 2 Poliester Elastomer back up rings used for decreasing permisible gap in both sides; 2 POM rings as guide besides them. As seen in this design, sealing operation is carried out by NBR ring.To avoid of any mistakes while using the seal, the measures for piston should be in the tolerances given in catalogue. For example, misusing of ds measure results in failure of the seals or decreasing the working life of it. Having all the parts cutted expect NBR ring provides easy assembly of the seal. For special applications, a combination of VITON and PTFE rings can be used.

"For needs out of standard dimensions, please apply our costumer service."


Operating Conditions

Media

Mineral oils ( DIN 51524 ) HFA,HFB,HFC hydraulic fluids

Temperature

-30 °C + 105°C

Operating Pressure

< 400 Bar

Linear Velocity

< 5 m/sn

Surface Roughness



Ra

Rt

Sliding Surface

< 0.4   m

< 2   m

Housing Surface

< 1.6   m

< 6.3   m

Products

Technical Data
