Mech 36 Piston Rod Seal

Welcome To Mech Spares Private Limited

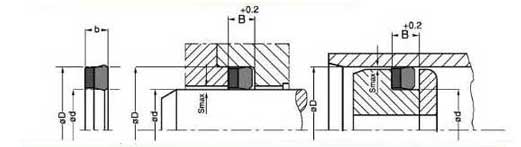

MECH 36 Piston ROD Seal

ITEM	ITEM NO.	MECH CODE	DIMENSION
PISTON ROD SEAL	MECH36	MECH36-004	4.76 X 12.70 X 6.35
PISTON ROD SEAL	MECH36	MECH36-010	10 X 17 X 6,3
PISTON ROD SEAL	MECH36	MECH36-010/1	10 X 19 X 6,3
PISTON ROD SEAL	MECH36	MECH36-012	12 X 20 X 6,3
PISTON ROD SEAL	MECH36	MECH36-014	14 X 22 X 6,3
PISTON ROD SEAL	MECH36	MECH36-014/1	14 X 22 X 7
PISTON ROD SEAL	MECH36	MECH36-015	15 X 23 X 6,3
PISTON ROD SEAL	MECH36	MECH36-016	16 X 24 X 6,3
PISTON ROD SEAL	MECH36	MECH36-016/1	16 X 24 X 6,5
PISTON ROD SEAL	MECH36	MECH36-016/2	16 X 24 X 7
PISTON ROD SEAL	MECH36	MECH36-018	18 X 26 X 6,3
PISTON ROD SEAL	MECH36	MECH36-018/1	18 X 24 X 5,2
PISTON ROD SEAL	MECH36	MECH36-019	19,5 X 27,5 X 8.3
PISTON ROD SEAL	MECH36	MECH36-020	20 X 28 X 6,3
PISTON ROD SEAL	MECH36	MECH36-020/1	20 X 26 X 5,5
PISTON ROD SEAL	MECH36	MECH36-020/2	20 X 27 X 6,5
PISTON ROD SEAL	MECH36	MECH36-020/3	20 X 28 X 7
PISTON ROD SEAL	MECH36	MECH36-020/4	20 X 30 X 8,5
PISTON ROD SEAL	MECH36	MECH36-022	22 X 30 X 6,3
PISTON ROD SEAL	MECH36	MECH36-022/1	22 X 30 X 6,5
PISTON ROD SEAL	MECH36	MECH36-022/2	22 X 30 X 7
PISTON ROD SEAL	MECH36	MECH36-022/3	22 X 32 X 7.3
PISTON ROD SEAL	MECH36	MECH36-025	25 X 32 X 6,3
PISTON ROD SEAL	MECH36	MECH36-025/1	25 X 33 X 6,3
PISTON ROD SEAL	MECH36	MECH36-025/2	25 X 33 X 6
PISTON ROD SEAL	MECH36	MECH36-025/3	25 X 35 X 8,3
PISTON ROD SEAL	MECH36	MECH36-025/4	25 X 33 X 6,4
PISTON ROD SEAL	MECH36	MECH36-025/5	25 X 35 X 9
PISTON ROD SEAL	MECH36	MECH36-028	28 X 36 X 6,3
PISTON ROD SEAL	MECH36	MECH36-028/1	28 X 43 X 11
PISTON ROD SEAL	MECH36	MECH36-028/2	28 X 35 X 4.5
PISTON ROD SEAL	MECH36	MECH36-028/3	28 X 36 X 6,4
PISTON ROD SEAL	MECH36	MECH36-028/4	28,57 X 41,27 X 10
PISTON ROD SEAL	MECH36	MECH36-030	30 X 38 X 6,3
PISTON ROD SEAL	MECH36	MECH36-030/1	30 X 38 X 6
PISTON ROD SEAL	MECH36	MECH36-030/2	30 X 40 X 6,3
PISTON ROD SEAL	MECH36	MECH36-030/3	30 X 40 X 7,5
PISTON ROD SEAL	MECH36	MECH36-030/4	30 X 40 X 7
PISTON ROD SEAL	MECH36	MECH36-030/5	30 X 50 X 14.5
PISTON ROD SEAL	MECH36	MECH36-030/6	30 X 38 X 6,4
PISTON ROD SEAL	MECH36	MECH36-030/7	30 X 37,5 X 6,5
PISTON ROD SEAL	MECH36	MECH36-031	31,75 X 47,62 X 11,6
PISTON ROD SEAL	MECH36	MECH36-032	32 X 40 X 6,3
PISTON ROD SEAL	MECH36	MECH36-032/1	32 X 44 X 12,5
PISTON ROD SEAL	MECH36	MECH36-035	35 X 43 X 6,3
PISTON ROD SEAL	MECH36	MECH36-035/1	35 X 45 X 8
PISTON ROD SEAL	MECH36	MECH36-035/2	35 X 43 X 6
PISTON ROD SEAL	MECH36	MECH36-035/3	35 X 50 X 11,5
PISTON ROD SEAL	MECH36	MECH36-035/4	35 X 43 X 6,5
PISTON ROD SEAL	MECH36	MECH36-035/5	35 X 43 X 7.3
PISTON ROD SEAL	MECH36	MECH36-036	36 X 44 X 6,3
PISTON ROD SEAL	MECH36	MECH36-036/1	36 X 51 X 11
PISTON ROD SEAL	MECH36	MECH36-038	38 X 50 X 9.5
PISTON ROD SEAL	MECH36	MECH36-038/1	38,1 X 50,8 X 12,4
PISTON ROD SEAL	MECH36	MECH36-040	40 X 48 X 6,3
PISTON ROD SEAL	MECH36	MECH36-040/1	40 X 50 X 8
PISTON ROD SEAL	MECH36	MECH36-040/2	40 X 48 X 8
PISTON ROD SEAL	MECH36	MECH36-040/3	40 X 50 X 7
PISTON ROD SEAL	MECH36	MECH36-040/4	40 X 48 X 6,5
PISTON ROD SEAL	MECH36	MECH36-040/5	40 X 60 X 14,5
PISTON ROD SEAL	MECH36	MECH36-040/6	40 X 50 X 11
PISTON ROD SEAL	MECH36	MECH36-040/7	40 X 48 X 7.3
PISTON ROD SEAL	MECH36	MECH36-042	42 X 50 X 6,3
PISTON ROD SEAL	MECH36	MECH36-045	45 X 53 X 8,5
PISTON ROD SEAL	MECH36	MECH36-045/1	45 X 55 X 8
PISTON ROD SEAL	MECH36	MECH36-045/2	45 X 55 X 10,5
PISTON ROD SEAL	MECH36	MECH36-045/3	45 X 60 X 11
PISTON ROD SEAL	MECH36	MECH36-045/4	45 X 57 X 9.5
PISTON ROD SEAL	MECH36	MECH36-045/5	45 X 65 X 14,5
PISTON ROD SEAL	MECH36	MECH36-045/6	45 X 53 X 6.3
PISTON ROD SEAL	MECH36	MECH36-046	46 X 56 X 8
PISTON ROD SEAL	MECH36	MECH36-048	48 X 60 X 10
PISTON ROD SEAL	MECH36	MECH36-050	50 X 62 X 9,5
PISTON ROD SEAL	MECH36	MECH36-050/1	50 X 60 X 7,5
PISTON ROD SEAL	MECH36	MECH36-050/2	50 X 60 X 8
PISTON ROD SEAL	MECH36	MECH36-050/3	50 X 60 X 10
PISTON ROD SEAL	MECH36	MECH36-050/4	50 X 70 X 14,5
PISTON ROD SEAL	MECH36	MECH36-055	55 X 65 X 8
PISTON ROD SEAL	MECH36	MECH36-055/1	55 X 67 X 10,5
PISTON ROD SEAL	MECH36	MECH36-055/2	55 X 70 X 10,5
PISTON ROD SEAL	MECH36	MECH36-055/3	55 X 63 X 8.3
PISTON ROD SEAL	MECH36	MECH36-056	56 X 66 X 8
PISTON ROD SEAL	MECH36	MECH36-056/1	56 X 76 X 14
PISTON ROD SEAL	MECH36	MECH36-060	60 X 70 X 8
PISTON ROD SEAL	MECH36	MECH36-060/1	60 X 70 X 7,5
PISTON ROD SEAL	MECH36	MECH36-060/2	60 X 72 X 9.5
PISTON ROD SEAL	MECH36	MECH36-060/3	60 X 80 X 12.5
PISTON ROD SEAL	MECH36	MECH36-060/4	60 X 72 X 10
PISTON ROD SEAL	MECH36	MECH36-060/5	60 X 75 X 13
PISTON ROD SEAL	MECH36	MECH36-060/6	60 X 80 X 14,5
PISTON ROD SEAL	MECH36	MECH36-063	63,5 X 82,55 X 14,28
PISTON ROD SEAL	MECH36	MECH36-065	65 X 73 X 9,6
PISTON ROD SEAL	MECH36	MECH36-065/1	65 X 77 X 9,6
PISTON ROD SEAL	MECH36	MECH36-070	70 X 80 X 7,5
PISTON ROD SEAL	MECH36	MECH36-070/1	70 X 82 X 9,6
PISTON ROD SEAL	MECH36	MECH36-070/2	70 X 82 X 9
PISTON ROD SEAL	MECH36	MECH36-070/3	70 X 90 X 14
PISTON ROD SEAL	MECH36	MECH36-070/4	70 X 85 X 8
PISTON ROD SEAL	MECH36	MECH36-070/5	70 X 80 X 8
PISTON ROD SEAL	MECH36	MECH36-070/6	70 X 85 X 12
PISTON ROD SEAL	MECH36	MECH36-075	75 X 87 X 9,3
PISTON ROD SEAL	MECH36	MECH36-075/1	75 X 85 X 8
PISTON ROD SEAL	MECH36	MECH36-080	80 X 92 X 9,6
PISTON ROD SEAL	MECH36	MECH36-080/1	80 X 96 X 10
PISTON ROD SEAL	MECH36	MECH36-080/2	80 X 92 X 9
PISTON ROD SEAL	MECH36	MECH36-080/3	80 X 90 X 8
PISTON ROD SEAL	MECH36	MECH36-085	85 X 97 X 9,6
PISTON ROD SEAL	MECH36	MECH36-090	90 X 102 X 9,6
PISTON ROD SEAL	MECH36	MECH36-090/1	90 X 110 X 12.5
PISTON ROD SEAL	MECH36	MECH36-100	100 X 115 X 12
PISTON ROD SEAL	MECH36	MECH36-100/1	100 X 120 X 14
PISTON ROD SEAL	MECH36	MECH36-110	110 X 125 X 12
PISTON ROD SEAL	MECH36	MECH36-110/1	110 X 130 X 12

PISTON ROD SEAL

Our K36 type of seal has a compact structure consisting of NBR impregnated fabric and 80 shore A NBR. Having high tensile strenght NBR impregnated fabric prevents the possible permissible gap during operation. Being used as single acting seal in applications both for piston and rod, K36 type of seal can be used safely in a pressure of 250 bar.

"For needs out of standart dimensions, please apply our customer service."
