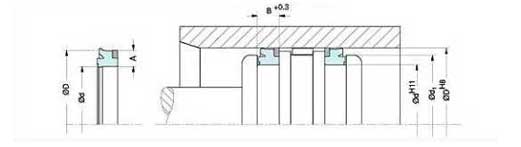

MECH 40 PU Piston Nutring

MECH 40 PU Piston Nutring
ITEM ITEM NO. MECH CODE DIMENSION
PU PISTON NUTRING MECH40 MECH40-014 PU 14 X 8 X 6
PU PISTON NUTRING MECH40 MECH40-036 PU 36 X 27 X 6
PU PISTON NUTRING MECH40 MECH40-040 PU 40 X 25 X 11
PU PISTON NUTRING MECH40 MECH40-045 PU 45 X 30 X 11
PU PISTON NUTRING MECH40 MECH40-045/1 PU 45 X 30 X 9,5
PU PISTON NUTRING MECH40 MECH40-050 PU 50 X 35 X 11
PU PISTON NUTRING MECH40 MECH40-050/1 PU 50 X 35 X 9.5
PU PISTON NUTRING MECH40 MECH40-055 PU 55 X 40 X 11
PU PISTON NUTRING MECH40 MECH40-055/1 PU 55 X 40 X 9.5
PU PISTON NUTRING MECH40 MECH40-060 PU 60 X 45 X 11
PU PISTON NUTRING MECH40 MECH40-060/1 PU 60 X 45 X 9.5
PU PISTON NUTRING MECH40 MECH40-065 PU 65 X 50 X 11
PU PISTON NUTRING MECH40 MECH40-070 PU 70 X 50 X 13
PU PISTON NUTRING MECH40 MECH40-080 PU 80 X 60 X 13
PU PISTON NUTRING MECH40 MECH40-080/1 PU 80 X 60 X 12,5
PU PISTON NUTRING MECH40 MECH40-090 PU 90 X 70 X 13
PU PISTON NUTRING MECH40 MECH40-100 PU 100 X 80 X 13
PU PISTON NUTRING MECH40 MECH40-110 PU 110 X 90 X 13
PU PISTON NUTRING MECH40 MECH40-125 PU 125 X 100 X 16,2
PU PISTON NUTRING MECH40 MECH40-140 PU 140 X 115 X 15
PU PISTON NUTRING MECH40 MECH40-150 PU 150 X 120 X 19

PU PISTON NUTRING

Our MECH36 type of seal has a compact structure consisting of NBR impregnated fabric and 80 shore A NBR. Having high tensile strenght NBR impregnated fabric prevents the possible permissible gap during operation. Being used as single acting seal in applications both for piston and rod, MECH36 type of seal can be used safely in a pressure of 250 bar.

“ For needs out of standart dimensions, please apply our customer service.”


Operating Conditions

Media

Mineral oils ( DIN 51524 ) HFA,HFB,HFC Hydraulic oils.

Temperature

-30 °C + 100 °C
<+40 °C HFA, HFB, HFC

Working Pressure

< 400 Bar

Linear Velocity

< 0.5 m/sn

Surface Roughness



Ra

Rt

Sliding Surface

< 0.3 m

< 3 m

Housing Surface

< 0.8 m

< 10 m

S Gap width Pressur


100

160

250

400

7.5

0.95

0.85

0.75

0.6

10

1.15

1.05

0.95

0.8
